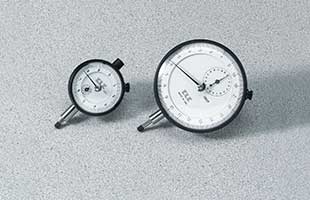

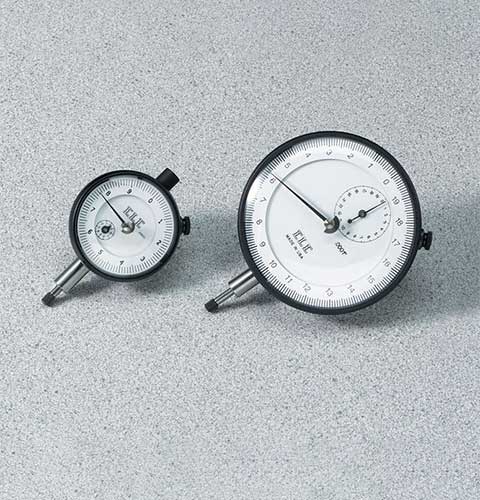

Mechanical Dial Indicator - 10 mm Range

88-4080

Category:

Soils, Laboratory Equipment

Sub Category:

Manual Consolidation, General, Dial Gauges

Product Group:

Mechanical Dial Indicators, Pneumatic Consolidation Apparatus, Table Top Consolidation Apparatus

Dial Indicator 10 mm Range
Description Mechanical Dial Indicator - 10 mm Range



Specifications

Range 10 mm
Divisions 0.0025 mm
Movement Counter-clockwise
Face Diameter 92 mm
Contact Point Immediate response, up or down; tip movement magnified to indicator hand with minimal friction; 3/16” (5 mm) radius x 1/4” (6 mm) l.
Dials With continuous graduations and revolution counters.
Measure Movement Measure movement away from dial case; pointer at zero with stem retracted.
Weight Net 12 oz. (34 0 g).



1" Extension Point

88-4154

1” (25 mm) Extension Point

1/2" Extension Point

88-4152

1/2” (13 mm) Extension Point.

1/4" Extension Point

88-4150

1/4” (6 mm) Extension Point

3" Extension Point

88-4156

3” (76 mm) Extension Point

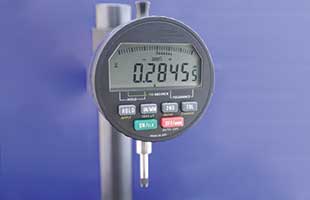

Electronic Digital Indicator, 0.600"/15 mm range

88-4210

Resolution of 0.0001" (0.002 mm)
