Constant Temperature Bath 5 to 99.9 Deg.C X 0.1 Deg.C with Led Display and False Base Support.

« return

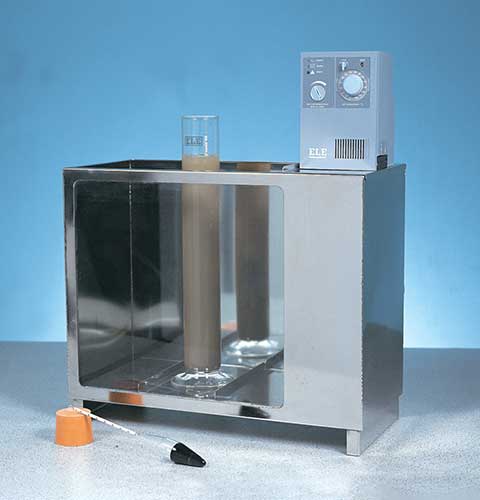

Constant Temperature Bath 5 to 99.9 Deg.C X 0.1 Deg.C with Led Display and False Base Support.

24-4865/01

Category:

Particle Size Distribution and Sand Equivalent Value

Sub Category:

N/A

Product Group:

Constant Temperature Bath

- Specially designed for Sedimentation of Testing of Soils

- Stainless steel construction with toughened glass front for viewing samples

- Must hold six sedimentation cylinders

- Complies to: BS 1377-2 EN DD ENV1997-2 ASTM D422 AASHTO T88

Specially designed for the sedimentation testing of soils and other fine grained material, the bath is supplied with a false bottom to assist in circulation of the bath liquid. Will accommodate six Sedimentation Cylinders.

Voltage Supply 220 - 240 V AC, 50/60 Hz, 1 ph



Specification

Dimensions (l x w x h) 535 x 210 x 610 mm external
Capacity Holds up to 6 sedimentation cylinders
Construction Stainless steel with toughened glass front
Temperature Control Heater/thermostat/circulation with digital controller unit 5 to 99.9 Deg.C X 0.1 Deg.C
Power 1500 watts
Weight kg 12
