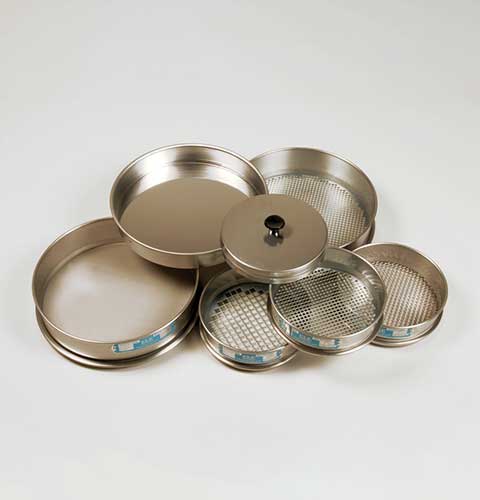

8in Dia ASTM Sieve 2.0mm Stainless Steel Mesh.

« return

8in Dia ASTM Sieve 2.0mm Stainless Steel Mesh.

79-5070

Category:

Particle Size Analysis, Laboratory Equipment

Sub Category:

Test Sieves, Gradation, Sieves

Product Group:

8in Dia ASTM Brass Sieves, 8" Diameter ASTM Sieves

Aperture Size 2 mm
Sieve Type Mesh
Sieve Opening, ” 0.0787
ASTM E11 Yes
Alternative designation 10
AASHTO M92 Yes
Description 8in Dia ASTM Sieve 2.0mm Stainless Steel Mesh
U.S description 8in Dia ASTM Brass Sieve
Sieve size or number No. 10
Sieve opening - standard (mm) 2.00
Sieve opening Alt. (in.) 0.0787

Specifications

FramesFull height; 2” (51 mm) depth
to mesh.
ConstructionPolished and lacquered brass with S.S. mesh.
NameplatesShow standard, alternate and Tyler Screen Scale equivalent designations.
WeightsNet 1 lb. (453 g).
Sieve Size or NumberNo. 10
Sieve Opening Standard 2.00 mm
Sieve Opening Alternative (in.)0.0787
