Low to high pressure manifold.

532-128

Category:

Soils

Sub Category:

Soil Physics

Product Group:

Pressure plate extractors

Required to regulate gas pressure source in pressure plate extraction systems.

3 types available to cover all requirements.

Enables precise control of pressure.

Pressure manifolds are an essential component in pressure plate extraction systems. They are required to control the air pressure, from a compressor or compressed air vessel, into the extractor. ELE can supply three different types to cover all requirements;

Low pressure manifold: for 0.5 bar systems.

Low to high pressure manifold: for 1-15 bar systems.

Combination manifold: for both 0-5 & 1-15 bar systems running in parallel.

The combination manifold combines both the low pressure and low to high pressure manifolds.

Description Low to High Pressure Manifold
Output pressure range 10 to 250 psi (0.7 to 16 bars)
Double regulation pressure range 5-150 psa (0.3 to 10 bars)
Readout pressure test gauge 0-300 psi (0-20 bars)
Dimensions  635 x 482 x 330 mm
Weight  6.6 kg

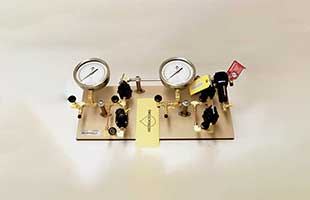

Combination Manifold.

532-136

This is required to regulate gas pressure source in pressure plate extraction systems.  There are 3 types available to cover all requirements and they enable precise control of pressure. Pressure manifolds are an essential component in pressure plate extraction systems. They are required to control the air pressure, from a compressor or compressed air vessel, into the extractor. ELE can supply three different types to cover all requirements.  Low pressure manifold: for 0-5 bar systems.  Low to high pressure manifold: for 1-15 bar systems.   Combination manifold: for both 0-5 and 1-15 bar systems running in parallel.   The combination manifold combines both the low pressure and low to high pressure manifolds.

Low Pressure Manifold

532-110

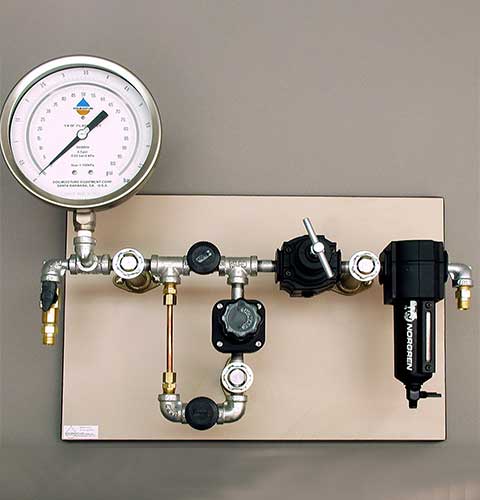

Required to regulate gas pressure source in pressure plate extraction systems. 3 types available to cover all requirements.  Enables precise control of pressure. The 532-110 Pressure Control Manifold is designed for regulating and monitoring the pressure supplied to pressure extractors. It is comprised of an air filter, pressure regulators, control valves, and test gauges. Mounted by standoffs to a 19 mm  3/4 thick baseboard suitable for mounting on a laboratory wall. (The Connecting Hose, from the manifold to the compressor is ordered separately).  Precise low-pressure control manifold designed for use with the 532-100 5 Bar Pressure Plate Extractor. Output pressure can be regulated from 3 to 60 psi (0.2 to 4 bars). Double regulation is provided. Readout pressure test gauge is graduated from 0 to 60 psi (0 to 4 bars) in 0.2 psi and 0.02 bar intervals.
