39-1150/01
Category:
Mixing, Moulding, Curing and Strength
Sub Category:
Moulding
Product Group:
Jolting Table

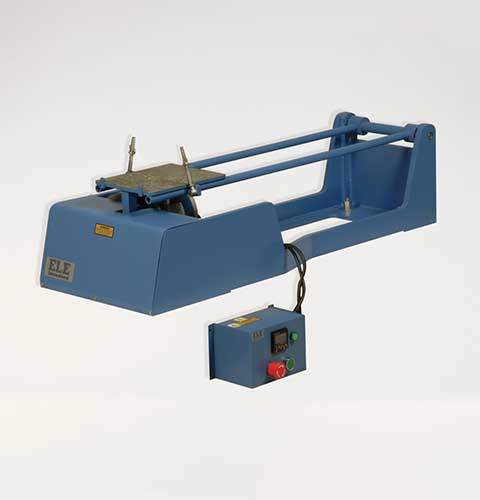

This machine consists of a mould table seated on a rotating cam driven at 60 revolutions per minute. The apparatus is supplied with a remote mains switch box, incorporating a push button start/stop control and automatic stop control at end of test.
Supplied without moulds.
Complies to EN 196-1, ISO 679, EN 413-2, EN 459-2, EN 13454-2.
**Not available for sale in the USA**
| Voltage Supply | 220 - 240 V AC 50 Hz |
| Description | Jolting Table |
| EN 196-1 | Yes |
| EN 413-2 | Yes |
| EN 459-2 | Yes |
| EN 1744-1 | Yes |
| EN 1015-10 | Yes |
| EN 1015-11 | Yes |
| EN 13454-2 | Yes |
| ISO 679 | Yes |
| BS 3892-1 | Yes |
| BS 4551-1 | Yes |
| Motor rating | 0.24 kW (1/3 hp) |
| Cam shaft RPM | 60 |
| Table lift | 15 +/- 0.3 mm |
|
Overall dimensions with swing bolts raised
|
(H x W x D) 340 x 400 x 1045 mm |
| Weight | 90 kg |
