25-0660
Category:
Soils
Sub Category:
Permeability
Product Group:
Double Ring Infiltrometer
| Mariotte Tubes | Graduated; two included; 3,000 ml and 10,000 ml capacities. |
| ASTM D3385 | Yes |

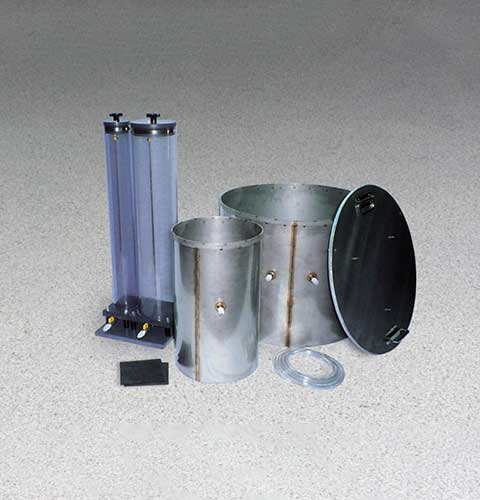

| Description | Double Ring Infiltrometer |
| Rings | Aluminum; two included, 12 ” i.d. x 20” h. (305 x 508 mm) and 24 ” i.d. x 20” h. (610 x 508 mm). |
| Driving Cap | Aluminum; 1/2” (12 .7 mm) thick; with centering pins. |
| Splash Guards | Neoprene; two included; 6” (152 mm) square. |
| Mariotte Tubes | Graduated; two included; 3,000 ml and 10,000 ml capacities. |
| Weight | Net 70 lbs. (31 .7 kg); Shpg. 90 lbs. (40.8 kg). |
514-440
Used for the determination of infiltration capacity above the water table. Allows synchronous determination of infiltration capacity in triplicate. A comprehensive kit for the determination of soil infiltration capacity above the water table. The components are manufactured from high-quality materials for exhaustive field use. 514-440 kit comprises; 3 x double ring infiltrometers: 1x inner ring 280 mm, outer ring 530 mm diameter 1x inner ring 300 mm, outer ring 550 mm diameter 1x inner ring 320 mm, outer ring 570 mm diameter Driving plate with handle for inner and outer rings 3 x adjustable measuring bridges 3 x floats with measuring rods 1 x nylon headed hammer 1 x stop watch, 0-30 sec x 0.1 sec accuracy
