532-107
Category:
Soils
Sub Category:
Soil Physics
Product Group:
Pressure plate extractors

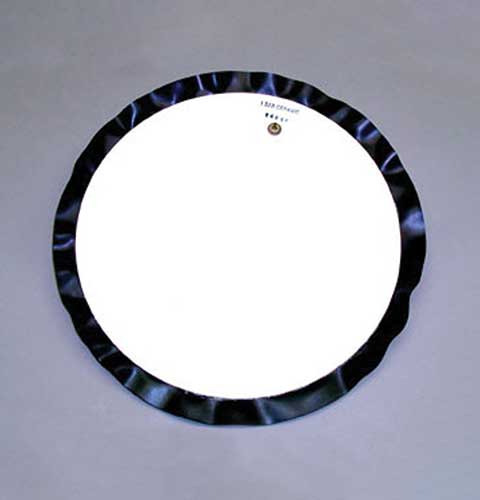

Developed from a complex mixture of ball clays into a fired ceramic body. Good porosity and good hydrologic flow capability. The material is very hard and brownish-white in colour, is not recommended for fluid sampling. Recommended for specialised applications where the pressure differentials are under 5 Bar (72.5 psi). Typical bubbling pressure: 80 psi. Effective pore size: 0.5 micron. Hydraulic conductivity: .000000121 cm/sec. Approximate porosity: 31% by vol. Flow through.
| Description | 5-Bar Pressure Plate Cell |
| Weight | 1 kg |
| Diameter | 27.30 cm |
532-104
Developed from a high fired Alumina body. Extremely porous, inert to most all solutions, possesses hard exterior and interior surfaces, and pure white in colour. Recommended for standard pressure differentials under 1 Bar (14.5 psi). Typical bubbling pressure: 28 - 32 psi. Effective pore size: 2.5 microns. Hydraulic conductivity: 0.0000086 cm/sec. Approximate porosity: 45% by vol. Flow through.
532-106
A complex mixture of ball clays into a moderately fired ceramic body. Good porosity and good hydrologic flow capability. The material is moderately hard and tannish-white in colour, not recommended for fluid sampling. Recommended for specialised applications where the pressure differentials are under 3 Bars (43.5 psi). Typical bubbling pressure: 46 - 70 psi. Effective pore size: 0.7 microns. Hydraulic conductivity: 0.00000025 cm/sec. Approximate porosity: 34% vol. Flow through.
