36-0695/02
Category:
Concrete
Sub Category:
Compression Machines
Product Group:
Accu-Tek Touch 250 Series
110vAC, 60 Hz, 1ø.

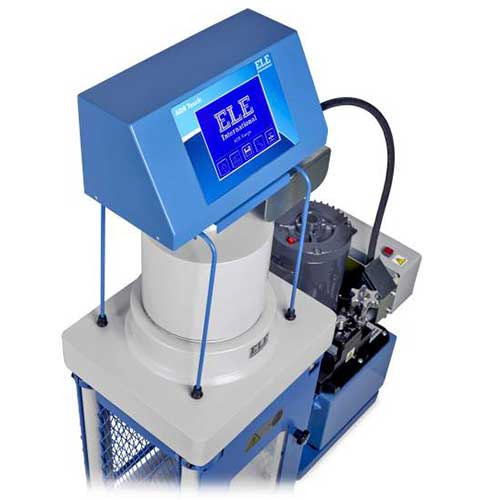

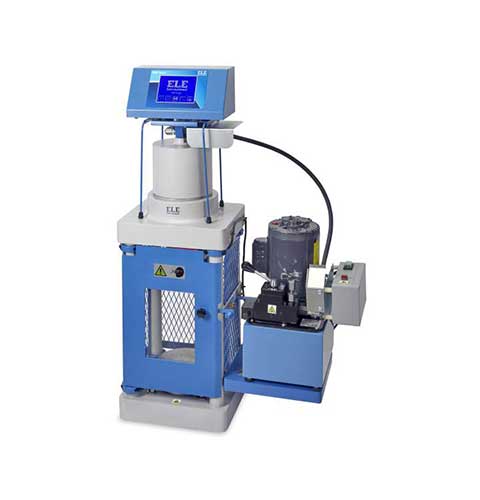

| Description | Accu-Tek Touch 250 Compression Machine 110V/60Hz |
| ASTM C39 | Yes |
| AASHTO T22 | Yes |
| Capacity | 250,000 lbf (1,112 kN) |
| Frame | Upper and lower steel plate sections with four steel uprights, threaded and welded into place; 14 .75” w. x 12 ” d. x 37” h. (375 x 305 x 940 mm). |
| Ram | 6-1/8” (155 mm) diameter; 3” (76 mm) travel. |
| Upper Platen | Swivel seat type; 6-1/4” (15 9 mm) diameter. |
| Lower Platen | 7” (178 mm) diameter. |
| Vetical Clearance | 12 -1/2” (31 8 mm); or 14 -1/2” (368 mm) with lower spacer removed - (Upper and Lower platens installed). |
| Horizontal Clearance | 9” (22 9 mm) between uprights. |
| Pump | 1 h.p. (0.7kw) electro-hydraulic pump mounted within reservoir with overload protection. |
| Conrols | Pump-mounted pressure compensated flow control valve with 4-position control lever and adjustable flow valve. Pump On/Off switch. |
| Display | 5.7" (145 mm) touch screen display, incorporating full key pad (QWERTY type); pace deviation bargraph; automatic stress calculation; 2 GB of internal memory for storing thousands of test results; download data to PC via USB or to printer via RS-232 interface. |
| Range | 2,500 to 25 0,000 lbf. (11 .2 to 1,112 kN). |
| Accuracy | Factory calibrated to within 0.5% of reading - from 1% to 100% of machine capacity. |
| Overall Dimensions | 25 .5” w. x 12 ” d. x 45 ” h. (648 x 305 x 1,143 mm). |
| Weight | Net 535 lbs. (243 kg). |
