27-1108/02
Category:
Soils
Sub Category:
Soil Strength (Triaxial), Triaxial Load Frames, Electronic Instrumentation, Data Acquisition
Product Group:
Digital Load and Displacement Readout, Versa-Loader, Digital Tritest 50 Load Frame
| Rated Power | 110vAC, 50/60Hz, 1ø. |

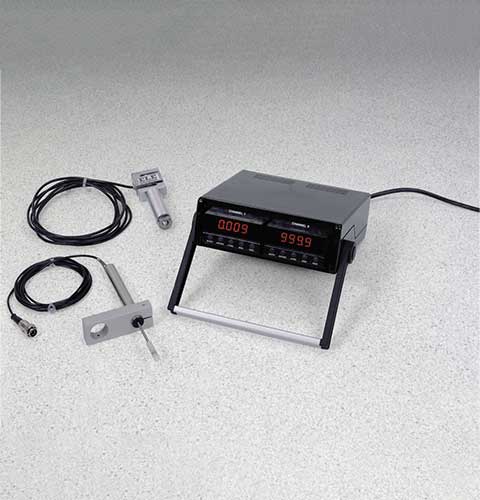

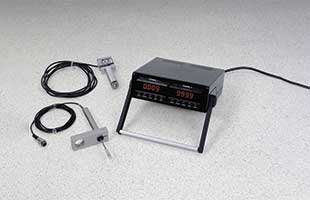

| Description | 2 Channel Digital Readout, English |
| Displays | Two, 4-digit red 14 segment LED displays. |
| Display Units | English models in lbf and inches; Metric models in kN and mm. |
| Read Rate | Three samples per second; automatic polarity. |
| Warm-Up Time | 30 minutes for rated accuracy. |
| Operating Temperature | 32 ºF - 12 0ºF (0ºC - 50ºC). |
| Dimensions | 9.3” w. x 9.3” d. x 3.2” h. (236 x 236 x 81.3 mm). |
| Weight | Net 8 lbs. (3.6 kg). |
27-1109/02
Transducers to be ordered separately. Metric units.
