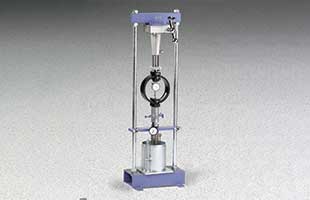

24-9150/02
Category:
Compaction & CBR Test Equipment, Soils
Sub Category:
California Bearing Ratio, Compaction and CBR, CBR
Product Group:
CBR-Test 50 Machine, CBR Load Frames
110-120vAC, 60 Hz, 1ø.
Proving Ring, Penetration Piston assembly and penetration dial indicator not included, order separately
| CBR Penetration | Yes |
| Voltage Supply | 110-120 V 60 Hz |
| Platen Travel, ” | 4.13 |
| AASHTO T99 | Yes |
| AASHTO T134 | Yes |
| AASHTO T135 | Yes |
| AASHTO T136 | Yes |
| AASHTO T180 | Yes |

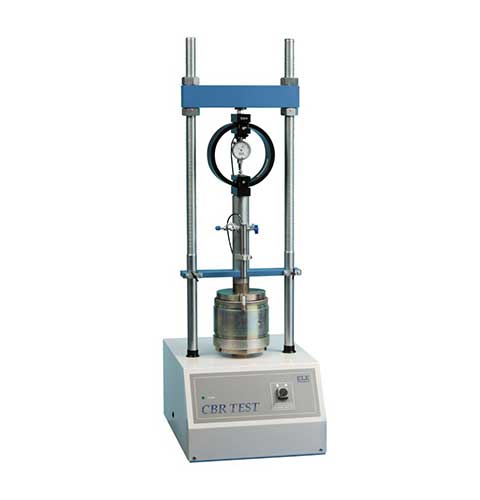

| Description | CBR-Test 50 Machine |
| Capacity | 11 ,200 lbf. (50 kN). |
| Horizontal Clearance | 10” (255 mm). |
| Vertical Clearance | 31 .5” (800 mm) maximum. |
| Platen | 5.24 ” (133 mm) diam. |
| Platen Travel | 4.13 ” (105 mm). |
| Amps | 4 |
| Dimensions | 15 .75” w. x 21 .65” d. x 48” h. (400 x 550 x 1,220 mm). |
| Weight | Net 269 lbs. (122 kg). |
27-1559
0 V AC/DC with an output of 2.7 mV/V nominal. Aluminium alloy and Stainless Steel construction with IP65 environmental protection. Fitted with 5-pin DIN plug.
24-9228
corrosion resistant finish, supplied with collar and perforated base plate. Designed to accept optional cutting collars and solid baseplates.
24-9183
piston is particularly useful for in-situ testing.
27-1705
e displacement measurements• Models available for use in consolidation, shear, CBR and triaxial test applications• Supplied complete with mounting hardware for specified productsDisplacement Transducers are used in consolidation, shear, CBR and triaxial test applications for accuratevdisplacement measurements. They are supplied complete with a 5-pin DIN type connector for direct connection to the GDU.
24-9175
, dial indicator with 1.0” range 10,000 lb capacity proving ring and mounting hardware.
24-9185
pe Load Cell, 50 mm Displacement Transducer and Penetration Piston. Compatible with Versa-Loader, Tritest 50, CBR-Test 50 and MultiPlex 50 Load Frames. Data Logger and Aquisition Software sold separately.
24-9177
, dial indicator with 25 mm range 45 kN capacity proving ring and mounting hardware.
24-9150/06
• Single speed machine (BS/EN and ASTM)• Rapid platen adjustment• Complete with stabilising bar• Compact, bench-mounting design• Options for mechanical or electronic measurementDesigned for performing laboratory CBR tests to BS 1377, EN13286-47 and ASTM D1883, this bench mounting machine comprises a twin column frame incorporating a motorised drive system. Rapid adjustment of the platen is provided, which enables daylight to be taken up quickly and also close control of application of a seating load.
